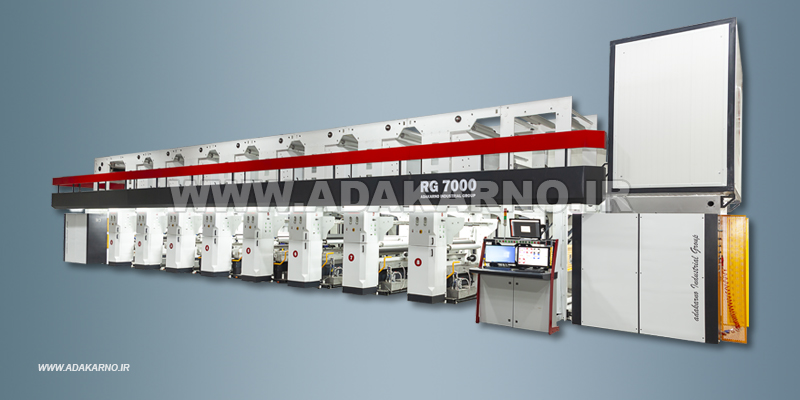

Shaft less Rotogravure printing machine for flexible packaging is designed for print widths up to 1450 mm and print length range of 450 - 1100 mm at the speed up to 250 m/min.

As a energy carrier thermal oil and electric power can be used.

The 8 color version of the machine require floor space 24×3 m² .

For high efficiency automatic turret unwind and rewind units are designed for maximum winding diameter of 1000 mm.

• Shaft less and electronic line shaft (ELS)
• Duplex winders with automatic splice
• Fully adjustable doctor blade in 3 direction
• Automatic side and long register control system
• Drying chambers with electrical heaters and delivery fans
• Stainless steel ink pan and ink tank with related pump
• Change over and fast setup operation
• Advanced automation by using EtherCAT technology
• Fully integrated operator-machine interface system

Technical specifications
Speed	250 m/min
Web width	850-1350 mm
Printing repeat	450-1050 mm
Diameter of winders reels	800-1000 mm
Reel weight	1000 Kg
Winders core diameter	76/152 mm
Web tension adjustable range	50-500 N
Drying inside length	1.8 m
